Electro
- Myoscope 85P
Objectives: Assess
and document musculoskeletal function;
treat according to indicators assessed
and modify using EMG feedback as a guide.
Monitor and document progress. Justify
need for continuing therapy.
The
EMS-85 was specifically designed to provide
today's clinician with an objective method
for understanding the patient's muscle
problem and its solution.
It
presents two decades of biomedical design & engineering
into the combined study and application
of muscle feedback and micro-current muscle
stimulation for the assessment, documentation
and treatment of Pain
& Dysfunction.
To
accomplish this, the EMS-85 is constructed
to allow the clinician to detect and study
the surface EMG activity of two muscle
sites of choice before and after micro-current
muscle stimulation. By this means, the
clinician has a greatly expanded capability
to assess the injury and then treat it
while monitoring muscle changes overtime-
a process very important to the development
of protocol utilization and its justification
for continuation of therapy.
The
EMS-85 is an advanced instrument using
microprocessor controlled technology to
improve performance. All major functions
are automated to enhance the effectiveness
of the therapy.
The
EMS-85 comes with a complete accessory
package for muscle stimulation and sEMG

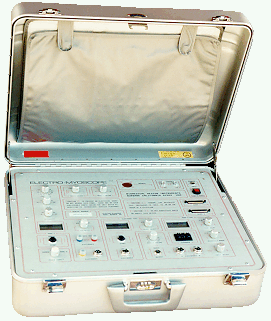

monitoring. The EMS-85's electronics are
built into a functional aluminum style
suitcase (airplane carry on size) in order
to maximize portability for quick setup
and breakdown. The EMS-85 is the ideal
instrument to assist the clinician in meeting
guidelines for documentation of therapeutic
results, but most importantly, the EMS-85
is a remarkable technology designed to
help the clinician to provide the very
best therapeutics their patient's deserve.
To
Order Call,
Fax or Email Animal Therapy Systems
We
accept
Checks,
Money
Orders
and
All
Major
Credit/Debit
Cards
EMS-85P
Specifications
Micro-current
Muscle Stimulator with Dual-input surface
Electromyography
Muscle
Stimulator:
- Complex
Wave Form at AC Setting, DC pulse train
at Positive or Negative setting Pulse
Width at AC setting: Modulating envelope
- 4 second period full envelope Raise
time 300 mSec., Fall time 300 mSec. Carrier
wave - 50% duty cycle Voltage - Variable
1 to 60 Volt peak to peak
- Pulse
width at DC Setting: Pulse train - 50%
duty cycle square wave. Raise time 300
mSec., Fall Time 300 mSec. 2 second period
envelope Voltage - Variable 1 to 30 Volts
- Frequency
Selections- 0.5, 1, 2, 4, 8, 10, 20,
30, 40, 50, 60 & 100 Hz.
- Intensity
Selections- 50, 100, 200, 300, 400
& 600 uA RMS
- Auto
Timer Selections- 6, 8, 12, 1 6, 30 sec. & Continuous.
- Electrode
Outputs- two sets of output (1 auto start
pair and 1 remote pair)
- Manual
Cycle Start Switch - activated from main
panel or trigger electrode
- LCD
Display Meter- current stimulation level
indicator
- Audio
Select - monitors frequency or intensity
EMG
Mode:
- Single
channel sEMG with Switch selectable Dual-Input
- Gain
- Three Ranges 0-10 uVolts, 1-100 uVolts
Absolute and Uncalibrated
- Amplifier
characteristic: Type differential Input
Impedance- Differential impedance = 1
Megohm Common mode impedance = 1000 Megohms
Common Mode Rejection Ratio = One Million
to One Passband - 70 to 500 Hz, Butterworth
Response -3db, roll-off 12db per Octave
Internal Noise- less than 0.3 uV RMS
with 20,000 ohm source impedance. Minimum
Detectable Signal- less than 1 uV Filter-
6OHz Notch Filter
- Visual
- LCD uVolt Level Indicator
- Audio
Feedback - Continuous - 1500 Hz Corresponds
to full scale deflection Speaker or headphone
for feedback training Volume Control
- Dual
Input Selector
- Time
Delay- three settings (Normal/Real Time
0.20 sec. and 0.90 sec. delay)
- Direct
resistance Electrode Test- 0 to 100 kohm
with LCD readout and electrode pair select
(Ground to Right; Ground to Left; Left
to Right)
- Power
Source: 24 VDC fully rechargeable lead
acid batteries Power module for wall
plug-in
- Dimensions:
16" deep x 8" high x 20" wide Net Weight:
22 pounds
- Haliburton
Aluminum Suitcase with removable vinyl
electrode liner
Standard
Accessories:
- Muscle
Stimulation Electrodes: Trigger
probe, Non-trigger probe, Y-probe with
two pairs of tips (short/long), Grand
Ball trigger probe, Interface cylinder,
Hand-held bar, Large footplate, Standard
set of ball tips, Coil Cords, Conductive
creme.
- EMG
Electrodes: Snap electrode assembly;
Headband (shielded), Placement electrode
assembly, Conductive gel, Velcro kit,
Pack of adhesive collars, Charger Module,
Manual.
|
