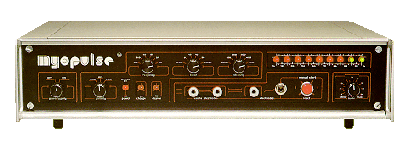

Myopulse 75C
The Myopulse was specifically designed to
provide today's clinician with an expedient
method for treatment of variety muscle and
connective tissue problems. The applications
range from: Prevention or retardation of
tissue atrophy, Relaxation of muscle spasm,
Increasing local blood circulation, Muscle
reeducation, Immediate post-surgical stimulation
to prevent venous thrombosis to: Maintaining
or increasing range of motion.
To acomplish this, the micro-current output
waveforms were optimized to reflect
changes in neuron muscle activity.
By this means, the clinician
has a expanded capability to
assist greater range of acute
injury and chronic problems.
The Myopulse comes with a complete accessory
package for Muscle Stimulation.
To Order Call, Fax or Email Animal Therapy
Systems
We
accept Checks, Money Orders and
All Major Credit/Debit Cards
Myo-75C Specifications
Intelligent Micro-current Muscle Stimulator:
- Complex Wave Form at AC Setting, DC pulse
train at Positive or Negative
setting Pulse Width at AC setting:
Modulating envelope - 4 second
period full envelope Raise
time 300 mSec., Fall time 300
mSec. Carrier wave - 50% duty
cycle Voltage - Variable 1
to 60 Volt peak to peak
- Pulse width at DC Setting: Pulse train - 50%
duty cycle square wave. Raise time 300
mSec., Fall Time 300 mSec. 2 second period
envelope
- Frequency Selections- 0.3, 5, 10, 20, 30,
40Hz.
- Intensity Selections- 50, 100, 200, 300, 400
& 600 uA RMS
- Timer Selections- 6, 8, 12, 16, 30 sec.
& Continuous.
- Electrode Outputs- two sets of output (1 control
and 1 remote pair)
- Manual Cycle Start Switch - activated from
main panel or trigger electrode
- LED Bar Meter- 9 level current stimulation
level indicator
- Power Source: 32 VDC fully rechargeable lead
acid batteries Power cord for wall plug-in
- Dimensions: 13" deep x 5" high x 19" wide
Net Weight: 25 pounds
Standard Accessories:
- Trigger probe, Non-trigger probe, Interface
cylinder, Hand-held bar, Large
footplate, Standard set of
ball tips, Coil Cords, Conductive
creme, Power Cord, Manual
|
